Why rapid shutdown device necessary for PV system

Enhancing Solar Safety through Smart Shutdown Solutions

The solar industry has evolved tremendously over the past decade, with increasing attention not only to efficiency and performance but also to safety and regulatory compliance. One of the most critical safety innovations in photovoltaic (PV) systems today is the rapid shutdown device. Designed to reduce electrical hazards during emergencies, a rapid shutdown device ensures that voltage levels on a PV system can be quickly brought down to safe limits, protecting both people and property. As rooftop solar installations become more common in residential, commercial, and industrial spaces, incorporating a rapid shutdown device into system design is no longer optional—it is a crucial necessity.

Understanding the Role of a Rapid Shutdown Device

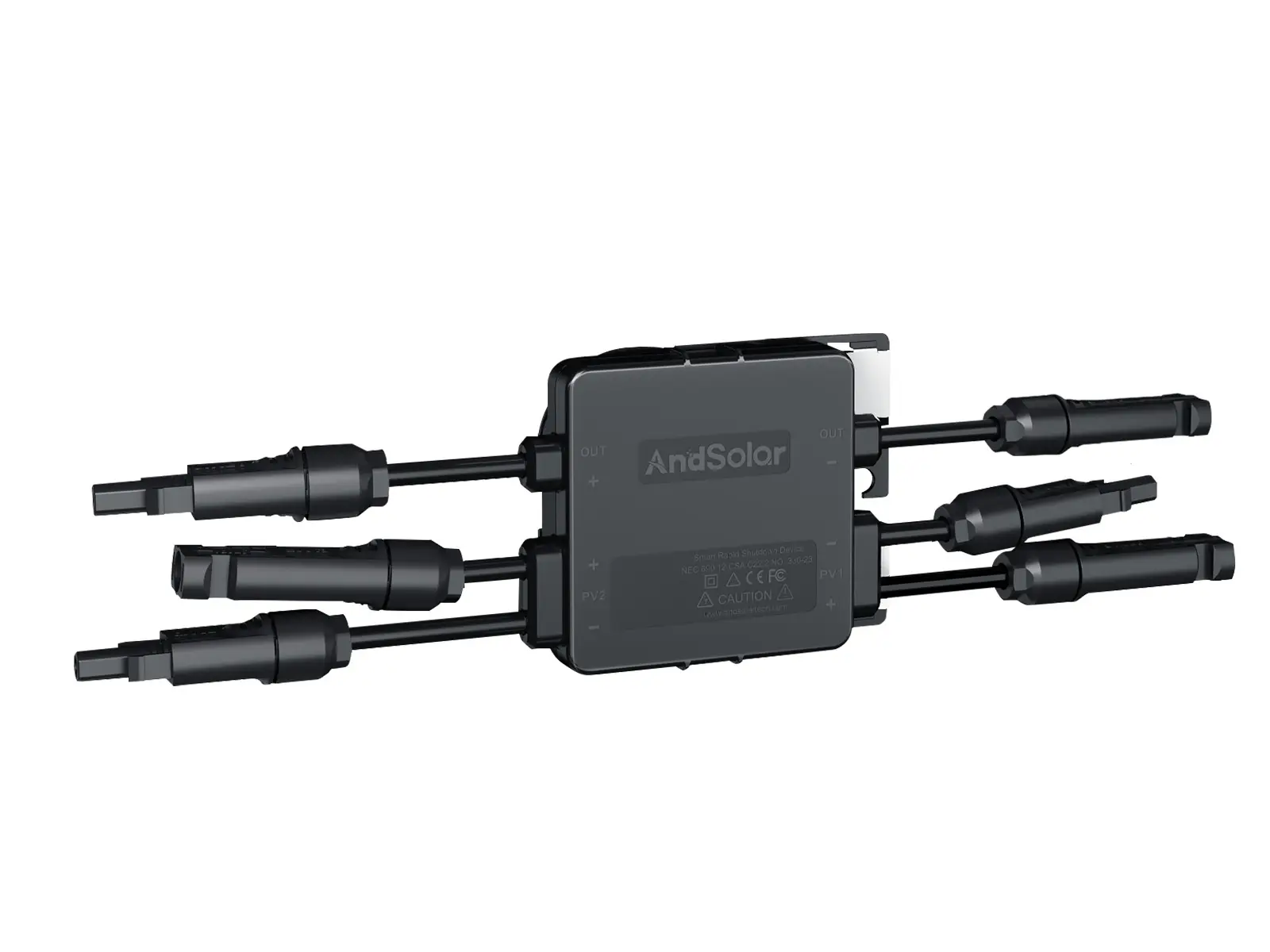

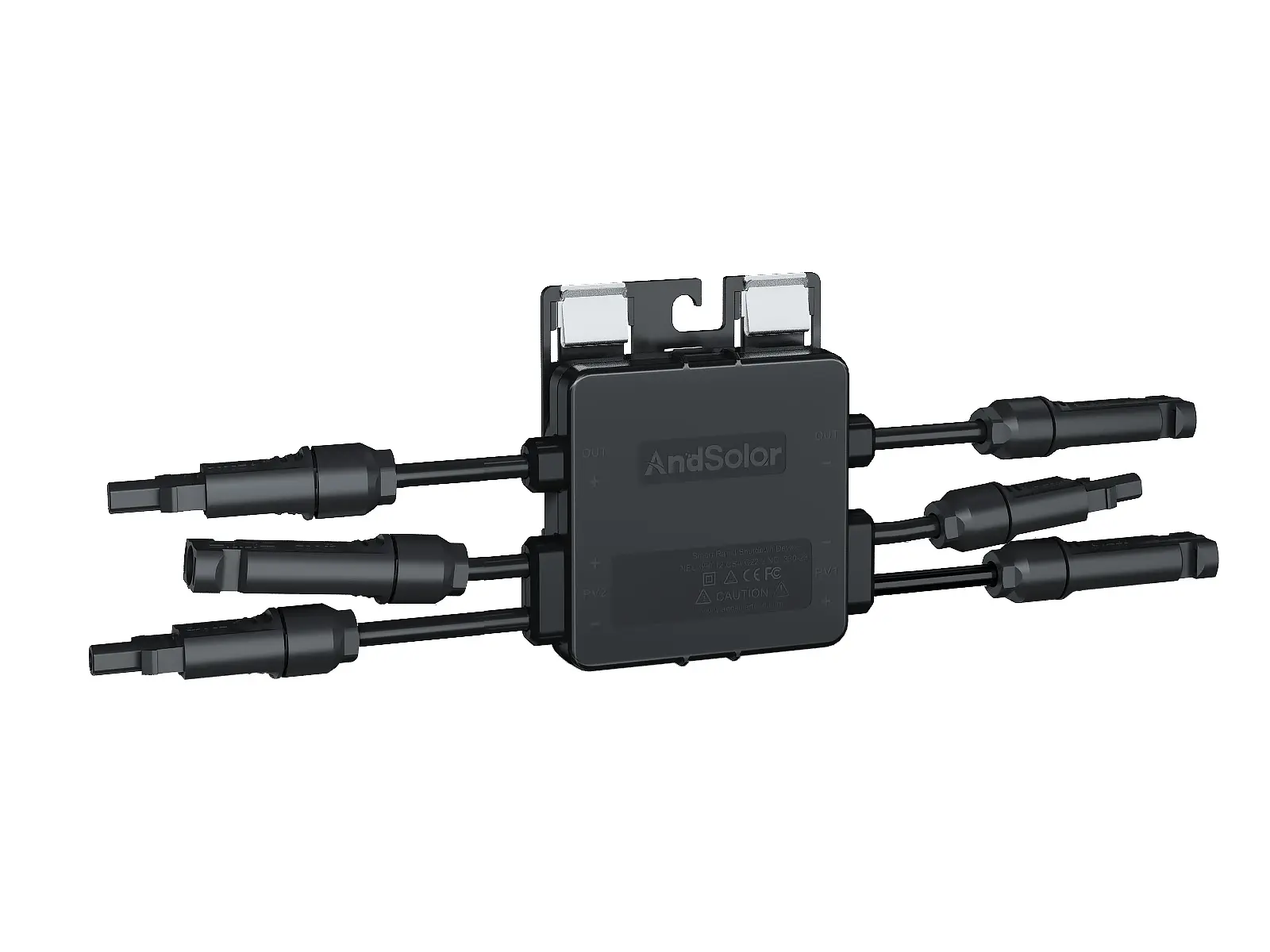

What is a Rapid Shutdown Device and How Does it Work?

A rapid shutdown device is a safety mechanism that allows for the quick reduction of electrical voltage on solar panels when the system is turned off or in an emergency situation. It typically operates by isolating the DC conductors from the inverter and de-energizing the conductors running through a building or on a rooftop. The National Electrical Code (NEC) has introduced increasingly strict requirements around this technology, with the intent of improving the safety of first responders, technicians, and homeowners. Once triggered, the rapid shutdown device reduces voltage to below 30 volts within 30 seconds, significantly minimizing the risk of electric shock or arc flash.

Why Electrical Isolation is Essential for PV Safety

PV systems without a rapid shutdown device often have long strings of high-voltage DC power running through conduits inside buildings and across rooftops. These live wires can remain energized even after turning off the inverter, posing serious risks during a fire or system maintenance. By deploying a rapid shutdown device, installers ensure that DC voltage is automatically or manually disconnected at the panel level. This level of isolation is essential for compliance with modern safety codes and reduces the danger to emergency personnel who may need to access a solar-equipped structure under hazardous conditions.

Regulatory Compliance and Fire Code Requirements

NEC Code Mandates and Their Impact on Installers

The inclusion of a rapid shutdown device has become a regulatory requirement in many countries, especially in regions adhering to the NEC in the United States. Starting with NEC 2014 and strengthened in NEC 2017 and NEC 2020, these codes mandate that rooftop PV systems must include a method to reduce conductors’ voltage to safe levels during emergencies. For system designers and installers, this means selecting equipment that meets these stringent standards and integrating it correctly. A rapid shutdown device is no longer just a best practice—it is a legal requirement in many jurisdictions, making compliance critical to avoid penalties and project delays.

Meeting International Standards and Insurance Expectations

Beyond NEC codes, many global fire and safety regulations are beginning to recognize the importance of a rapid shutdown device. Insurance companies also increasingly view these devices as essential components of a risk-reduction strategy, often influencing coverage terms and premiums. By incorporating a rapid shutdown device, PV system owners not only ensure regulatory compliance but also demonstrate a proactive approach to fire prevention and operational safety. This builds trust with insurers, local authorities, and clients, setting a professional standard for solar installations in both residential and commercial sectors.

Protection of Human Life and Property

First Responder Safety in Emergency Situations

One of the most compelling reasons to integrate a rapid shutdown device into a PV system is the protection it offers to first responders. In the event of a fire or other emergency, firefighters and emergency personnel must navigate the building quickly and safely. Without a rapid shutdown device, high-voltage wiring can remain energized, creating hidden electrical hazards that slow down rescue operations and endanger lives. By ensuring rapid voltage reduction at the panel level, these devices empower first responders to act without hesitation, knowing the risk of electrical shock is minimized.

Preventing Electrical Arcs and Fire Hazards

DC electricity is notoriously difficult to extinguish once an arc flash or electrical fire begins. PV systems without a rapid shutdown device are more susceptible to such incidents, particularly if damage or overheating occurs in wiring or connectors. By cutting power immediately when a fault is detected or during emergency shutdown, these devices dramatically reduce the chances of an electrical fire. This added layer of protection enhances the long-term safety of the building, occupants, and investment in the solar installation, helping prevent catastrophic events that could lead to injury, litigation, or loss of property.

Technical Integration and System Design Considerations

Incorporating Rapid Shutdown into Inverter and MLPE Systems

The integration of a rapid shutdown device must be carefully considered during the design phase of a PV system. Many modern inverters and module-level power electronics (MLPE) such as optimizers and microinverters now come with built-in rapid shutdown functions or are designed to be compatible with standalone shutdown devices. When using string inverters, additional components like contactors or dedicated shutdown units may be required. Ensuring proper communication between these devices and the inverter is key to meeting code requirements. The rapid shutdown device must activate promptly and reliably, even if AC power is lost during an emergency.

Retrofitting Existing Systems with Shutdown Capabilities

For older PV systems that were installed before rapid shutdown requirements came into effect, retrofitting may be necessary. Adding a rapid shutdown device to an existing system involves installing equipment that can isolate or interrupt DC current near the array. While this can present challenges, especially in systems with complex wiring or difficult access points, the safety and compliance benefits often outweigh the costs. Many manufacturers now offer retrofit kits that are designed to meet NEC standards, making it easier for homeowners and businesses to upgrade and protect their systems.

Economic and Practical Benefits of Shutdown Devices

Reducing Liability and Risk Exposure for System Owners

Installing a rapid shutdown device can significantly reduce the legal and financial risks associated with PV system operation. In the event of an accident or fire, a system that fails to meet modern safety standards could expose the owner to lawsuits, insurance claim denials, or regulatory fines. By investing in a rapid shutdown device, property owners demonstrate due diligence in mitigating known hazards. This protective measure adds value to the system by ensuring it remains compliant and insurable, contributing to the overall return on investment in solar technology.

Improving Maintenance Efficiency and Operational Uptime

Maintenance and troubleshooting are also safer and more efficient with a rapid shutdown device in place. Technicians can work on the system with confidence, knowing that voltage levels have been reduced to safe thresholds. This minimizes downtime, lowers the risk of injury, and speeds up diagnostics. Furthermore, many rapid shutdown devices are now integrated with smart monitoring platforms, allowing users to remotely verify that the system has been safely de-energized. This intelligent feature not only enhances safety but also contributes to better asset management across the system’s lifecycle.

Innovation and Future Trends in Shutdown Technology

Smart Shutdown Solutions for Grid-Interactive Systems

As PV systems increasingly connect with energy storage, EV charging, and smart grid platforms, the role of the rapid shutdown device is expanding. Advanced models now incorporate wireless communication, automation, and diagnostic features that align with the broader goals of grid responsiveness and safety. These innovations allow for remote activation, integration with building fire systems, and compatibility with hybrid inverters. A rapid shutdown device is no longer a passive safety component—it is becoming a smart, interactive part of the system architecture.

Growing Demand in Residential and Commercial Markets

The demand for rapid shutdown devices is expected to grow significantly as solar adoption increases across all sectors. In residential installations, homeowner awareness of fire safety is driving adoption, while in commercial and industrial settings, regulatory scrutiny and insurance demands are shaping installation standards. Manufacturers are responding with more streamlined, affordable, and integrated solutions that make rapid shutdown devices easier to install and configure. As this trend continues, the technology will become an indispensable component in all PV systems, shaping the future of solar safety.

FAQ

What is the purpose of a rapid shutdown device in a PV system?

A rapid shutdown device is used to reduce the voltage in solar panel circuits during emergencies or maintenance, enhancing safety for first responders and technicians.

Is a rapid shutdown device required by law?

Yes, in many regions following the NEC, it is legally required to include a rapid shutdown device in rooftop PV systems to meet safety and electrical code standards.

Can I add a rapid shutdown device to an existing solar system?

Yes, retrofit options are available for adding rapid shutdown capability to older PV systems, ensuring compliance with modern safety codes and reducing electrical hazards.

Do all inverters come with rapid shutdown functionality?

Not all inverters have built-in rapid shutdown features. Some require additional devices or integration with module-level electronics that support shutdown operations.
