How to choose the rapid shutdown device for your solar installation

2025-07-30 09:57:58
How to choose the rapid shutdown device for your solar installation

Making the Right Safety Choice for Solar Installations

As solar energy adoption continues to rise in both residential and commercial sectors, safety considerations are becoming a top priority during system design and installation. One of the most critical safety components in a photovoltaic (PV) system is the rapid shutdown device. This mechanism ensures that, in case of an emergency or maintenance event, the solar array can be quickly de-energized to reduce risks associated with live electrical components. Choosing the right rapid shutdown device is essential not only for code compliance but also for the overall safety, functionality, and performance of your solar energy investment.

Understanding the Purpose and Functionality of Rapid Shutdown Devices

What Does a Rapid Shutdown Device Do?

A rapid shutdown device is designed to quickly reduce the DC voltage generated by a solar array to safe levels, particularly in rooftop installations. When triggered—either manually or automatically during grid shutdowns or emergency events—it limits the electrical potential between the PV modules and the inverter. According to National Electrical Code (NEC) standards, the voltage must drop below 30 volts within 30 seconds outside the array boundary. This functionality protects emergency responders, maintenance workers, and building occupants from the dangers of electric shock or arc flashes during a fire or system failure.

Why Is a Rapid Shutdown Device Critical for Rooftop PV Systems?

In rooftop PV installations, long DC runs from the solar modules to the inverter can remain energized even after the AC disconnect is activated. This presents a hazard during emergencies or routine inspections. A rapid shutdown device ensures that these conductors are automatically de-energized, preventing voltage from flowing through the building’s structure. In jurisdictions that adhere to NEC 2017 and NEC 2020, having a compliant rapid shutdown device is not optional—it is mandatory. This not only ensures safety compliance but also secures the trust of insurers and fire safety officials who assess the risk profile of solar installations.

Types of Rapid Shutdown Devices Available on the Market

Module-Level Shutdown Devices

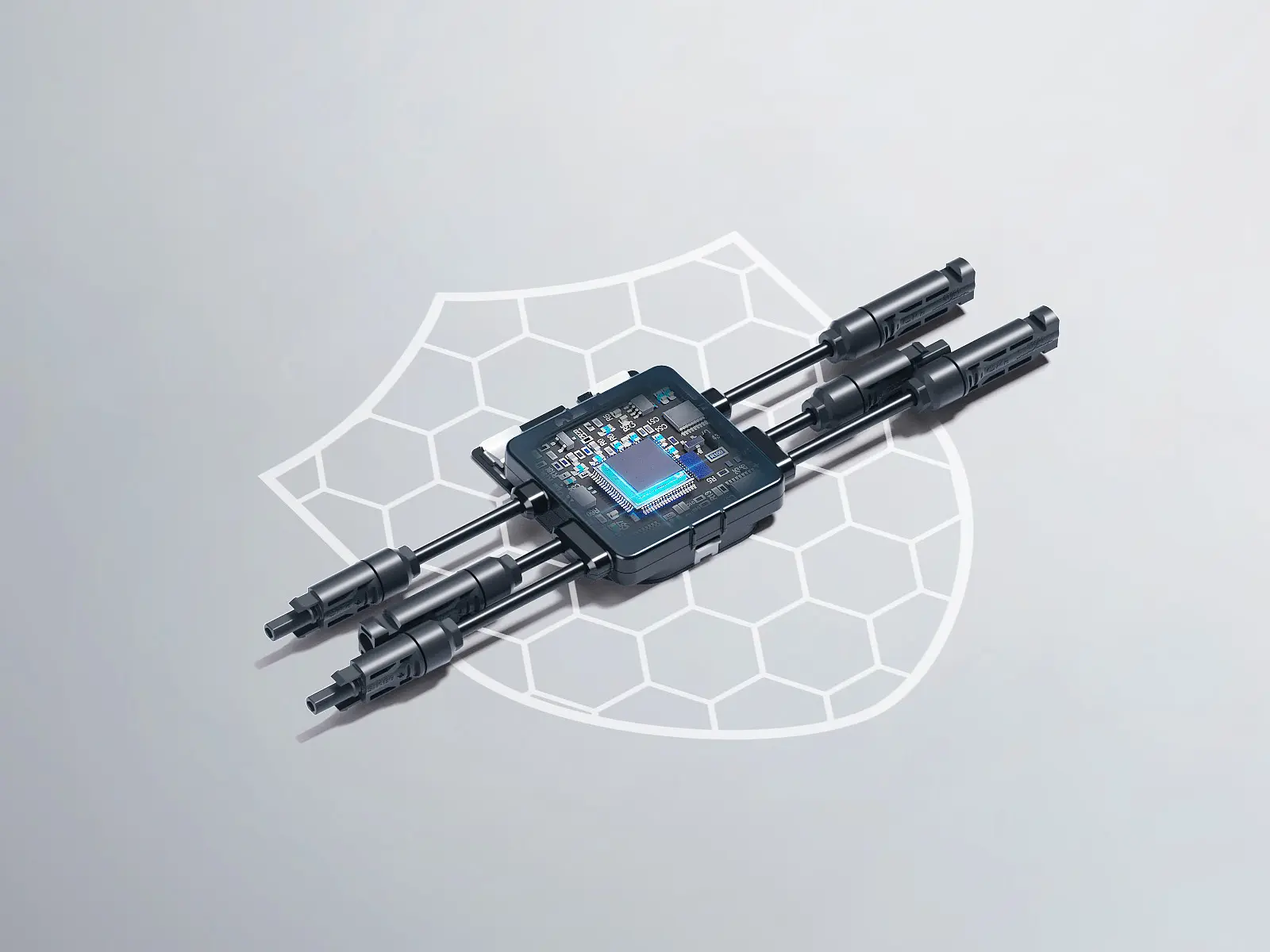

One of the most popular approaches to rapid shutdown is module-level implementation. These devices are installed on or near each solar panel and allow voltage to be minimized at the source. This design greatly enhances system safety by ensuring that no part of the array remains energized beyond the required voltage threshold. In most cases, module-level shutdown is achieved using optimizers or microinverters that integrate this functionality into their design. These solutions are often favored for residential and commercial projects where NEC compliance and high safety margins are required.

String-Level Shutdown Devices

An alternative to module-level solutions is string-level rapid shutdown devices, which are installed at the beginning or end of each string of panels. These devices disconnect the entire string from the rest of the system, significantly reducing voltage along the wiring path. While they are generally more cost-effective than module-level devices, they may not provide the same level of granularity and safety. For large-scale utility or ground-mounted projects where roof access is not a factor, string-level rapid shutdown devices can be an acceptable solution if they meet local regulatory codes.


Evaluating Compatibility with Inverters and MLPE Systems

Integration with Central and String Inverters

When selecting a rapid shutdown device, it's crucial to verify its compatibility with your chosen inverter. Many modern string inverters support communication with external shutdown devices, but not all are universally compatible. You’ll need to ensure that the rapid shutdown device can communicate properly to initiate shutdown commands during grid failure or emergency events. Some inverter manufacturers offer proprietary rapid shutdown solutions that are fully integrated, which can simplify design and installation but may limit flexibility in component selection.

Coordinating with Microinverters and Optimizers

If your PV system uses microinverters or optimizers, the choice of rapid shutdown device becomes more straightforward. Many module-level power electronics (MLPE) already incorporate rapid shutdown functionality within their operation. In these setups, each panel operates independently, and voltage can be reduced to safe levels directly at the module. This architecture often meets or exceeds NEC standards, providing peace of mind and simplified wiring configurations. Still, it is essential to verify that your MLPE system meets local code requirements and is recognized as compliant by relevant authorities.

Factors to Consider When Selecting a Rapid Shutdown Device

System Voltage and Configuration

Not all rapid shutdown devices are suitable for every PV system. The voltage rating of the device must match or exceed the operating voltage of your array. For example, a rapid shutdown device designed for 600V systems may not be suitable for newer 1000V or 1500V utility-scale installations. Additionally, system configuration—whether you're using a centralized inverter, a string inverter, or MLPE—will influence the type of device needed. Proper matching ensures reliable operation and long-term durability, especially in harsh outdoor environments.

Installation Environment and Accessibility

Another key factor in selecting a rapid shutdown device is the physical layout and accessibility of your installation. In residential rooftops with multiple array sections, module-level devices may offer greater safety and code compliance. On commercial rooftops or ground-mounted systems, string-level solutions might be more practical and cost-effective. Environmental conditions such as temperature extremes, humidity, and exposure to sunlight should also be considered. Devices rated for outdoor or rooftop use must be weather-resistant and capable of enduring seasonal temperature fluctuations.

Cost and Value Considerations for System Owners

Balancing Upfront Investment with Long-Term Safety

While rapid shutdown devices add to the initial cost of a PV system, their long-term safety benefits far outweigh the expense. In many jurisdictions, including the U.S., failure to install a compliant rapid shutdown device can delay permitting, prevent utility interconnection, or void insurance coverage. Investing in a certified rapid shutdown solution ensures your project is future-proof, avoids costly redesigns, and enhances system credibility. Owners should work with qualified installers who understand code compliance and can guide them toward devices that offer optimal performance and reliability.

Comparing Product Warranties and Manufacturer Support

Different manufacturers provide varied levels of warranty coverage and technical support for rapid shutdown devices. A longer warranty period can offer greater peace of mind, particularly for systems with expected lifespans of 25 years or more. Manufacturer reputation, customer service quality, and availability of technical documentation should all factor into the buying decision. Opting for a device backed by a trusted brand can reduce maintenance issues, minimize downtime, and ensure compatibility with future system upgrades or changes in regulations.

Installation Best Practices and Safety Protocols

Ensuring NEC Compliance through Proper Installation

Even the best rapid shutdown device will fail to meet safety goals if not installed properly. Installers must follow both the manufacturer’s instructions and local building codes when deploying shutdown devices. Proper wiring, grounding, and labeling are essential to ensure that first responders can identify system shutdown points easily. Installers should also conduct thorough system tests to confirm that voltage drops to the required level within the NEC-mandated time frame. Certification from a licensed electrician or third-party inspector may also be required in certain regions.

Periodic Testing and Maintenance Recommendations

Although rapid shutdown devices are largely passive safety tools, periodic testing is necessary to ensure continued functionality. Building owners should incorporate shutdown testing into regular PV maintenance schedules, checking for signs of wear, corrosion, or communication errors between the device and inverter. Newer models may offer remote diagnostics, alerting operators when maintenance is required or when the system fails to meet shutdown criteria. Documenting these tests can also provide useful proof of compliance during insurance audits or building inspections.

FAQ

What is the main purpose of a rapid shutdown device?

A rapid shutdown device protects emergency responders and maintenance personnel by reducing the voltage of a solar array to safe levels during shutdowns, minimizing the risk of electric shock or fire.

Are all solar installations required to have a rapid shutdown device?

In most regions that follow the National Electrical Code, particularly NEC 2017 and NEC 2020, rooftop PV systems must include a rapid shutdown device to meet legal safety requirements.

How do I know if a rapid shutdown device is compatible with my system?

You should check the voltage rating, inverter compatibility, and system architecture (centralized, string, or MLPE) to ensure the chosen rapid shutdown device integrates properly with your installation.

Can I install a rapid shutdown device myself?

While possible for experienced professionals, it’s recommended that a licensed installer or electrician handle the installation to ensure compliance with safety codes and proper system performance.
