Module-level power electronics (MLPE) roles in PV systems

2025-07-03 09:58:54
Module-level power electronics (MLPE) roles in PV systems

Enhancing Solar Energy Efficiency Through Module-Level Innovations

In the evolution of solar energy systems, the demand for improved efficiency, safety, and monitoring capabilities has driven the emergence of module-level technologies that fundamentally change how photovoltaic (PV) arrays operate. Among these innovations, Module-Level Power Electronics (MLPE) play a critical role in optimizing energy output and performance. MLPE solutions have introduced greater flexibility and intelligence to solar power systems, enabling a granular approach to energy harvesting and control. As solar installations become more widespread in both residential and commercial sectors, understanding the significance of MLPE becomes essential for designers, installers, and system owners seeking long-term value and performance.

The Functionality and Components of MLPE

What Are MLPE Devices and How Do They Operate?

MLPE refers to electronic devices that are attached directly to individual PV modules to manage their electrical output at the module level. Unlike traditional systems that rely on centralized inverters to control the entire array, MLPE components such as microinverters and power optimizers operate independently on each panel. This decentralized approach allows each panel to perform at its maximum potential, regardless of shading, orientation, or degradation affecting neighboring panels. MLPE constantly adjusts voltage and current parameters, ensuring optimal power point tracking (MPPT) at the module level, which results in higher energy yield and better overall system performance.

Key Components of MLPE Systems

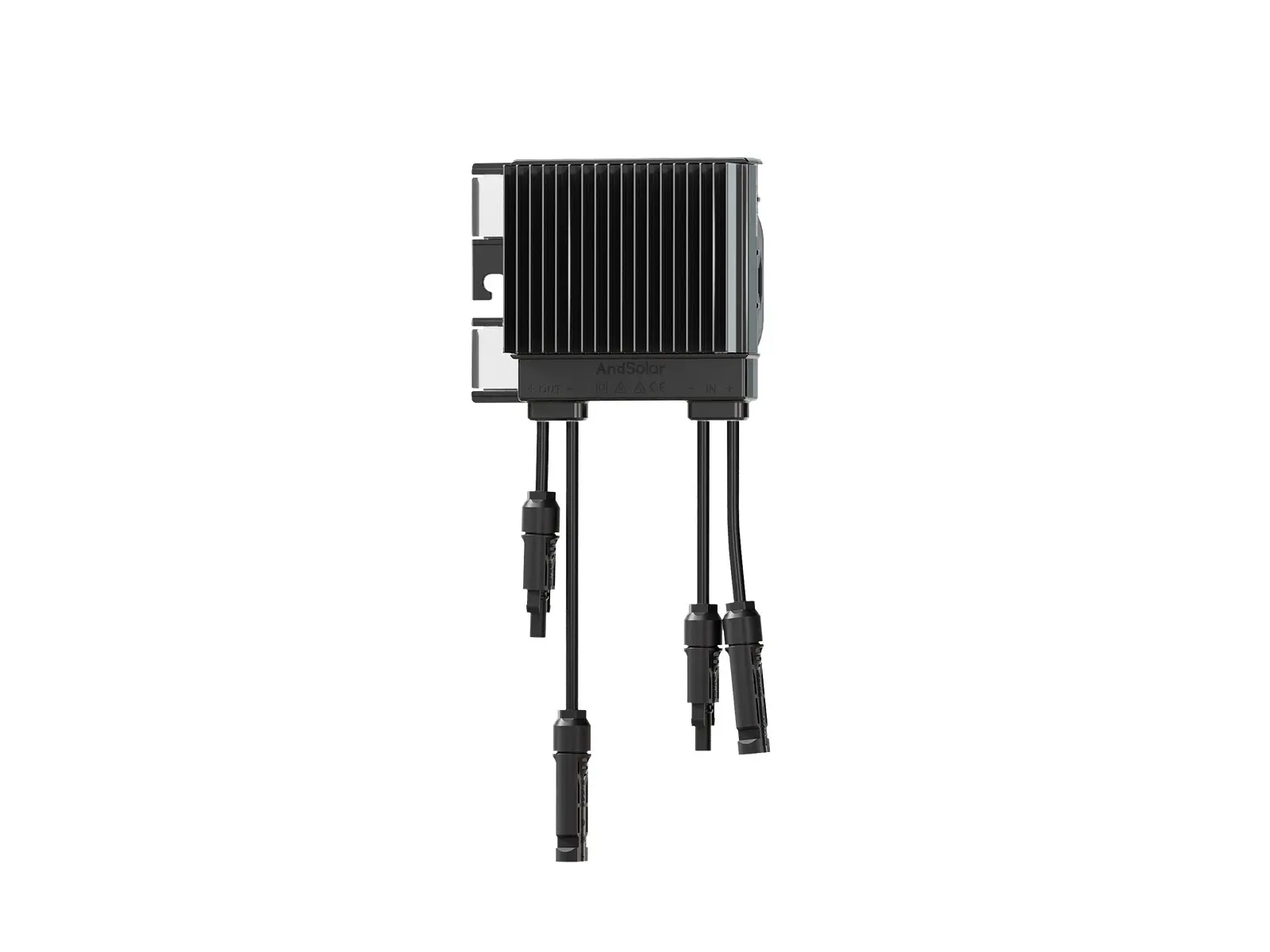

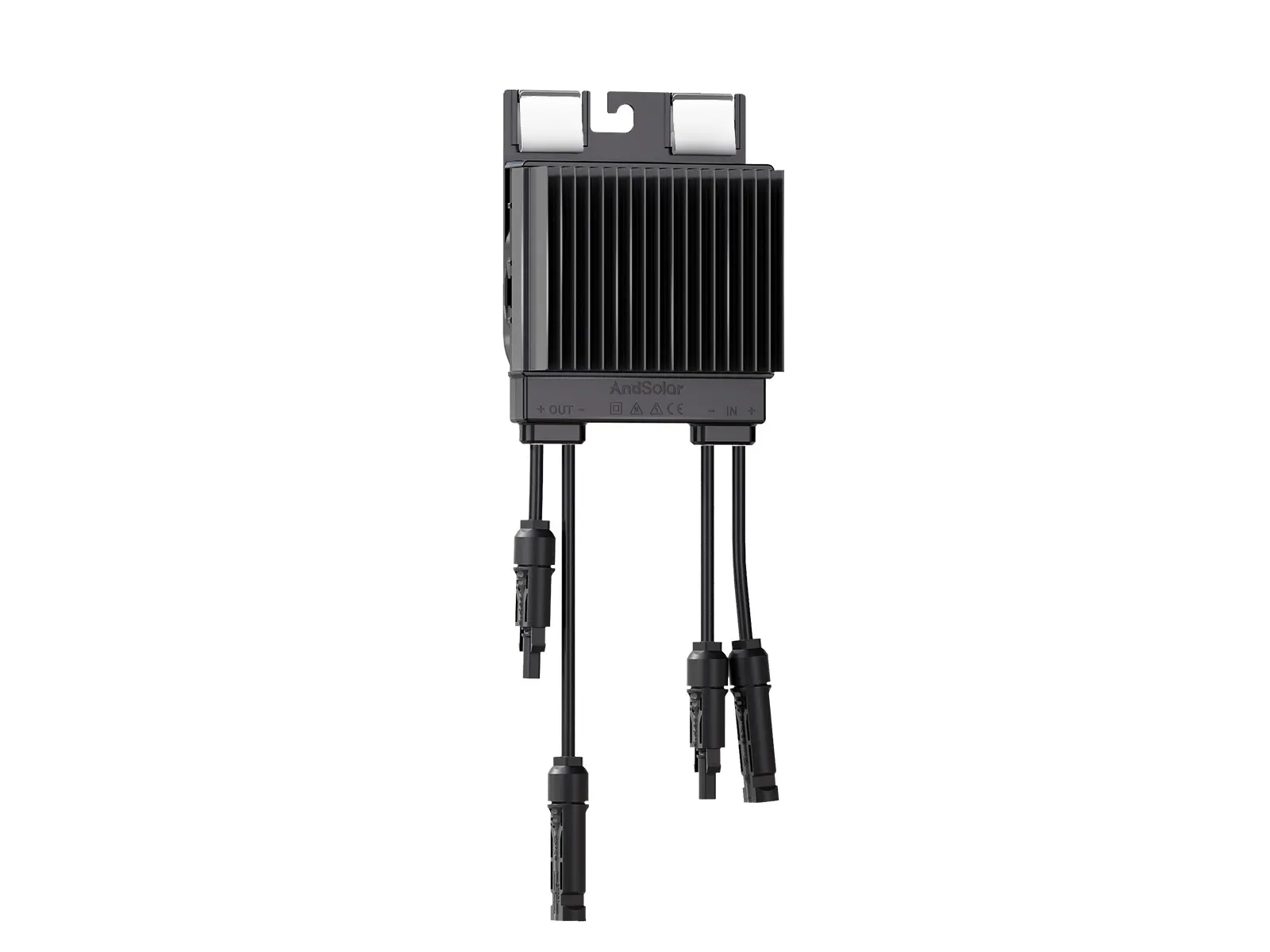

There are primarily two types of MLPE devices used in PV systems: microinverters and DC power optimizers. Microinverters convert the DC electricity generated by a single panel into AC power, eliminating the need for a central inverter and simplifying system architecture. Power optimizers, on the other hand, condition the DC output before sending it to a central inverter, offering benefits such as individual panel monitoring and performance optimization. Both types of MLPE devices contribute significantly to improving the reliability, safety, and scalability of PV systems, and their use is rapidly expanding across various applications.


Advantages of MLPE in Photovoltaic Systems

Improved Energy Harvesting and Efficiency

One of the core benefits of integrating MLPE into a PV system is the ability to maximize energy harvesting. In conventional string inverter setups, the performance of the entire string is limited by the weakest panel—whether due to shading, dirt, or mismatch. MLPE mitigates this issue by enabling each panel to function independently, thereby avoiding power losses caused by underperforming modules. This results in higher total system output over time. Especially in installations with variable panel orientations or potential shading throughout the day, MLPE proves essential in achieving optimal energy efficiency.

Enhanced System Monitoring and Diagnostics

MLPE-equipped systems offer real-time monitoring at the module level, giving installers and system owners detailed insights into the performance of each panel. This granular visibility allows for early detection of faults, shading issues, or degradation, enabling prompt maintenance and minimizing downtime. Modern MLPE systems come with online dashboards and mobile apps that allow users to monitor system health remotely. This capability enhances system reliability and makes it easier to manage large or geographically dispersed installations, such as those found in commercial solar farms or multi-unit residential buildings.

MLPE for Safety and Compliance

Integrated Safety Features and Rapid Shutdown Capabilities

Safety has become a critical concern in solar energy, particularly with the rise in rooftop installations in residential areas. MLPE devices support rapid shutdown functions, which are now mandated by electrical codes in many regions. These features ensure that voltage levels are quickly reduced in the event of an emergency or maintenance, reducing the risk of electrical shock or fire. Microinverters and optimizers with built-in shutdown capabilities provide a safer alternative to conventional string systems, especially during firefighting or first-responder interventions. This makes MLPE not just a performance upgrade, but a safety requirement in many scenarios.

Fire Prevention and Arc Fault Detection

MLPE systems contribute significantly to fire prevention through advanced arc fault detection. These devices can identify abnormal current patterns that may indicate electrical arcs—potential fire hazards—and isolate affected panels before they escalate into dangerous events. Compared to traditional systems where fault detection is limited, MLPE's panel-level monitoring enables quicker response and more accurate diagnostics. This level of control and protection makes MLPE essential in meeting modern safety standards and in ensuring the long-term viability of solar investments, particularly in densely populated or industrial environments.

System Flexibility and Design Freedom

Simplified System Expansion and Scalability

One of the often-overlooked advantages of MLPE is the design flexibility it introduces. Traditional systems require careful panel matching and uniform orientation to ensure efficient operation. MLPE removes these constraints, allowing different panel types, brands, and orientations within the same array. This enables system designers to take full advantage of available roof space and tailor installations to architectural limitations. Furthermore, adding new panels in the future is straightforward, as each module operates independently. This scalability makes MLPE ideal for homeowners or businesses planning to expand their systems gradually over time.

Ideal for Complex Roof Structures

MLPE is especially beneficial in installations on roofs with complex geometries, multiple tilt angles, or partial shading. In such cases, traditional string systems may underperform due to mismatches and inter-panel dependencies. With MLPE, each panel adapts to its specific conditions, ensuring that output is not compromised by irregular installation surfaces. This adaptability allows solar to be deployed in previously unsuitable locations, increasing the reach of PV technologies. From urban apartments to industrial buildings with cluttered rooftops, MLPE enables solar to integrate smoothly without compromising efficiency or aesthetics.

MLPE's Role in Sustainability and Lifecycle Optimization

Minimizing Energy Losses Over Time

Long-term energy production is a crucial metric in determining the return on investment for solar systems. MLPE helps maintain higher performance over the life of the system by counteracting the effects of panel mismatch, aging, and partial shading. With traditional systems, even minor inefficiencies can compound over time, leading to significant energy losses. MLPE ensures that each panel continues to operate optimally, thereby maximizing the system’s lifetime energy yield. This not only improves the environmental benefits of solar energy but also enhances its economic attractiveness for consumers and businesses alike.

Reducing Maintenance Costs and Downtime

Because MLPE enables detailed diagnostics, maintenance becomes more targeted and less invasive. Technicians can pinpoint underperforming or malfunctioning panels quickly, reducing the time and labor costs associated with troubleshooting. Additionally, many MLPE devices come with long warranties and robust designs that withstand harsh environmental conditions, further lowering maintenance requirements. In systems where uptime is critical—such as hospitals, manufacturing facilities, or data centers—this level of reliability and cost control is invaluable. MLPE’s contribution to system longevity and reliability ensures that solar installations deliver value over decades.

Cost Considerations and Market Adoption of MLPE

Assessing the Return on Investment

While MLPE systems typically involve higher upfront costs compared to traditional inverters, the long-term benefits often outweigh the initial investment. Improved energy output, reduced maintenance, enhanced safety, and greater design flexibility all contribute to a faster payback period and lower total cost of ownership. For residential customers, incentives and rebates may also help offset the additional costs. In commercial installations, the higher efficiency and reliability of MLPE can lead to substantial operational savings over time, making them a financially sound choice for large-scale projects.

Growing Adoption Across Global Markets

As the solar industry matures, the adoption of MLPE is accelerating in markets across North America, Europe, and parts of Asia. Regulatory requirements such as NEC 2017’s rapid shutdown mandates in the United States have made MLPE a default choice in many residential installations. Simultaneously, growing awareness of MLPE’s benefits is leading commercial and industrial sectors to embrace the technology as well. With ongoing advancements in manufacturing and a broader range of compatible components, MLPE is becoming increasingly accessible, contributing to the global push for cleaner, smarter energy systems.

FAQ

What does MLPE stand for in solar systems?

MLPE stands for Module-Level Power Electronics. It refers to devices like microinverters and power optimizers that manage the output of individual solar panels for improved performance, safety, and monitoring.

How does MLPE improve the efficiency of a PV system?

MLPE allows each panel in a solar array to operate independently, avoiding power losses caused by shading, dirt, or mismatched panels. This increases overall system efficiency and energy yield.

Are MLPE devices compatible with all solar panels?

Yes, most MLPE devices are designed to be compatible with a wide range of PV modules, including monocrystalline, polycrystalline, and thin-film panels. Always check manufacturer specifications for full compatibility.

Is MLPE required by electrical codes?

In some regions, especially the U.S., MLPE devices are required to meet safety standards such as rapid shutdown protocols mandated by NEC codes. These requirements are increasing the adoption of MLPE in residential and commercial systems.
